MAIN COLORFUL C.B250A-BTC YV20

Motherboard_Model	C.B250A-BTC V20
Chipset	Intel B250
Processor	support Intel LGA 1151 processors
Memory	2 DIMM slots，support DDR 4 dual channel 2400/2133 MHZ memory
Graphics	1*PCI Express 3.0×16 slot 5*PCI Express x1 slots
Board_IO	1*PS2 ports，2*USB2.0 ports,4*USB3.0 ports,1*RJ45 lan，3*audio ports（6-channel support） 1*VGA port，1*DVI port,1*HDMI port; onboard： 2*9-pin USB2.0 header， 1*19-pin USB3.0 header
Expansion_Slots	6*UPCIE slots
SATA_Ports	5*SATA3.0 6Gb/s ports
BIOS	128M UEFI
Power_Management	support 84W processors
Hardware_Monitor	CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring
LAN	Onboard 1000M LAN，Provides 10/100/1000Mb Ethernet
Audio	6-Channel audio chipset
Configuration	200 x 295 mm ATX
Warranty	1 year
Other_Features	extension pattern is diversity and extension performance is strong

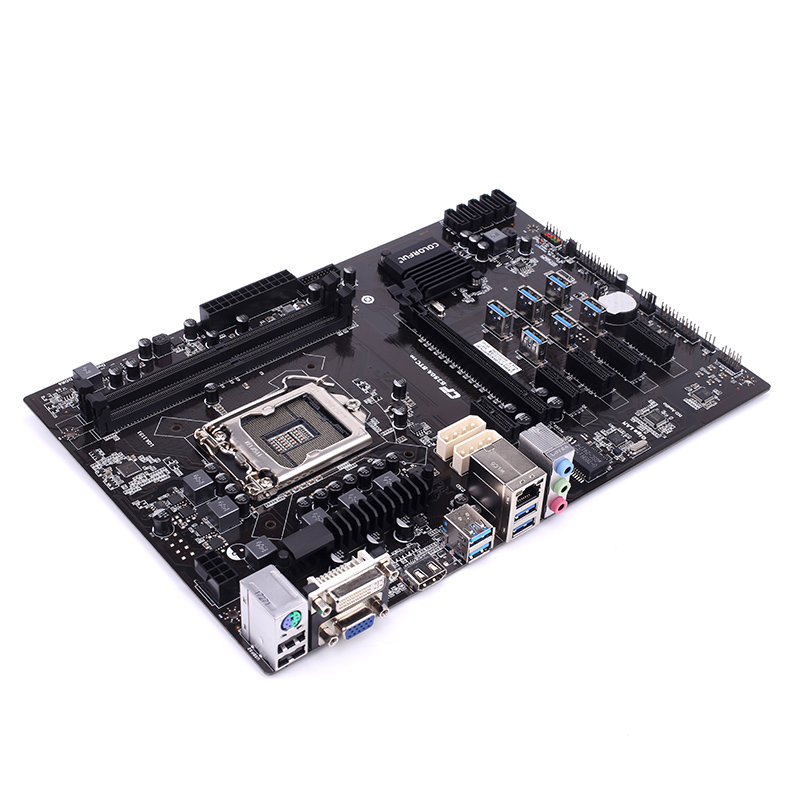

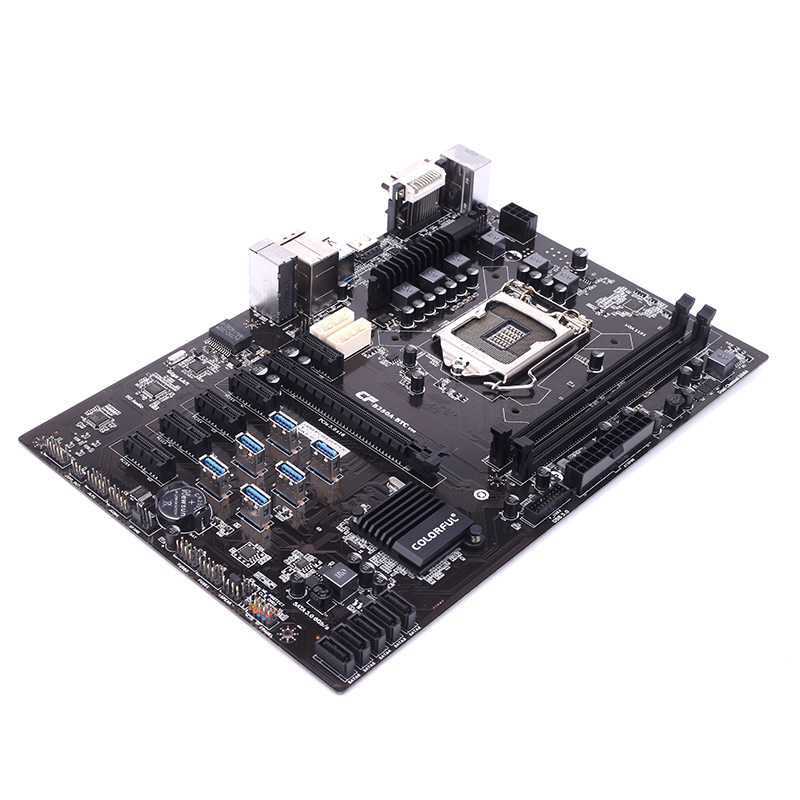

Based on for Intel B250 chipset, support for Intel LGA 1151 processors, support dual channel DDR4 2400/2133MHz memory. Equipped with 6 PCI-E / 6 UPCIE slots, this is a professional miming motherboard which allowing up to 12 cards to be used. Colorful C.B250A-BTC YV20 utilizes an all-solid capacitor setup and a rigid power management module ensuring highly stable power delivery and great performance enchantment. It is a good choice for mining coins and the most cost-effective and smart way to maximize each mining rig’s profitability.

Features:

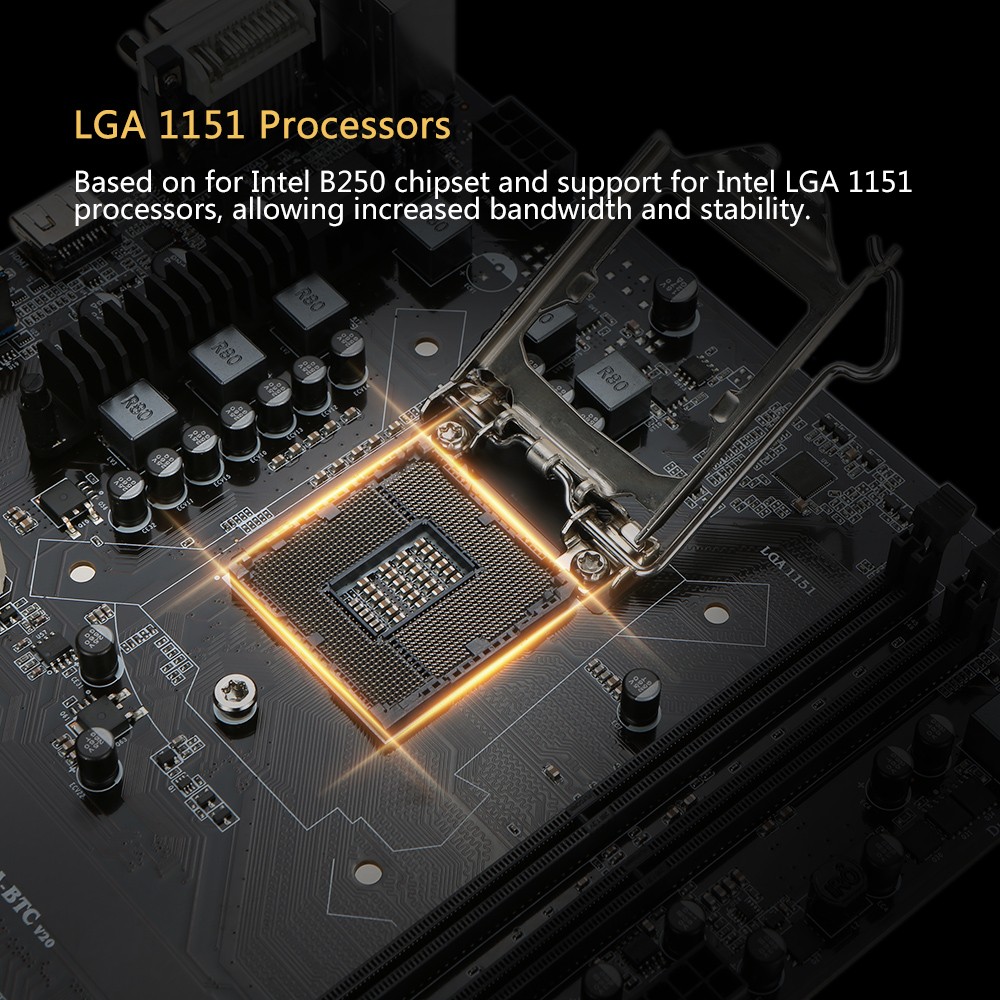

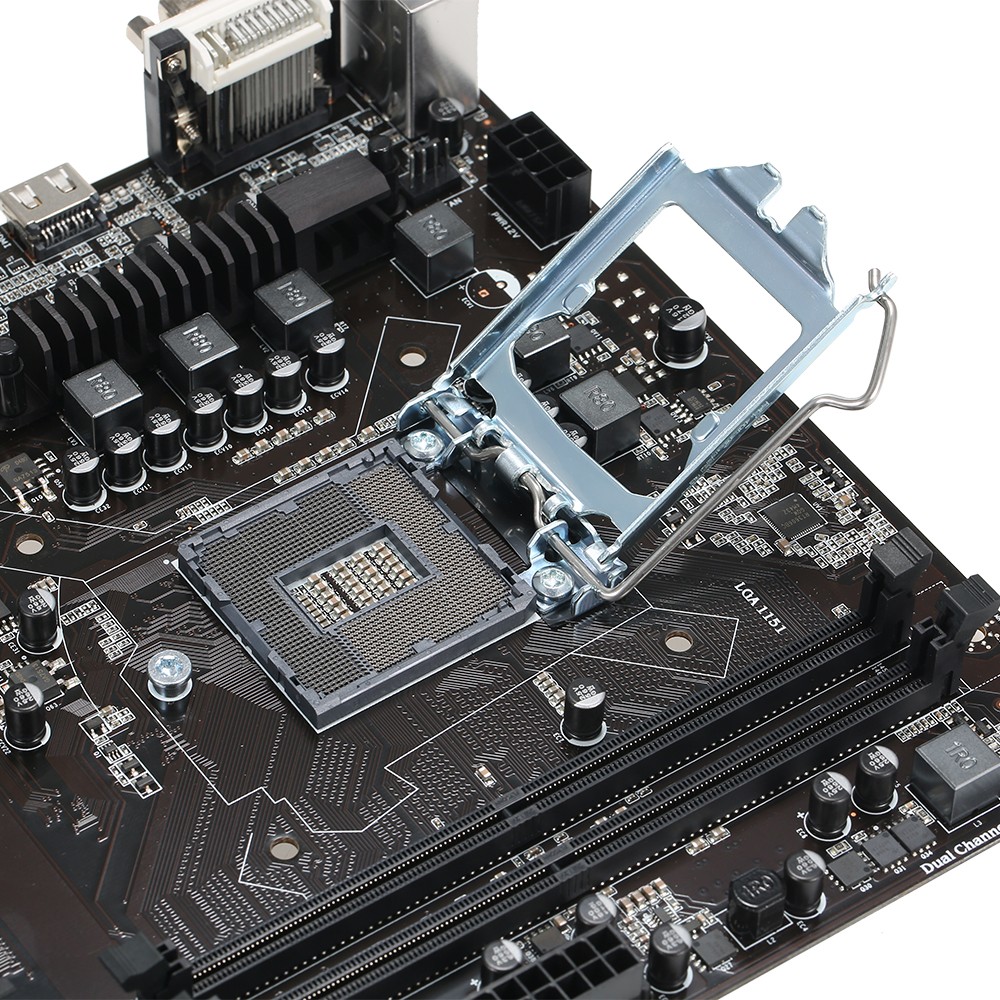

LGA 1151 Processors
Based on for Intel B250 chipset and support for Intel LGA 1151 processors, allowing increased bandwidth and stability.

Professional Mining Motherboard

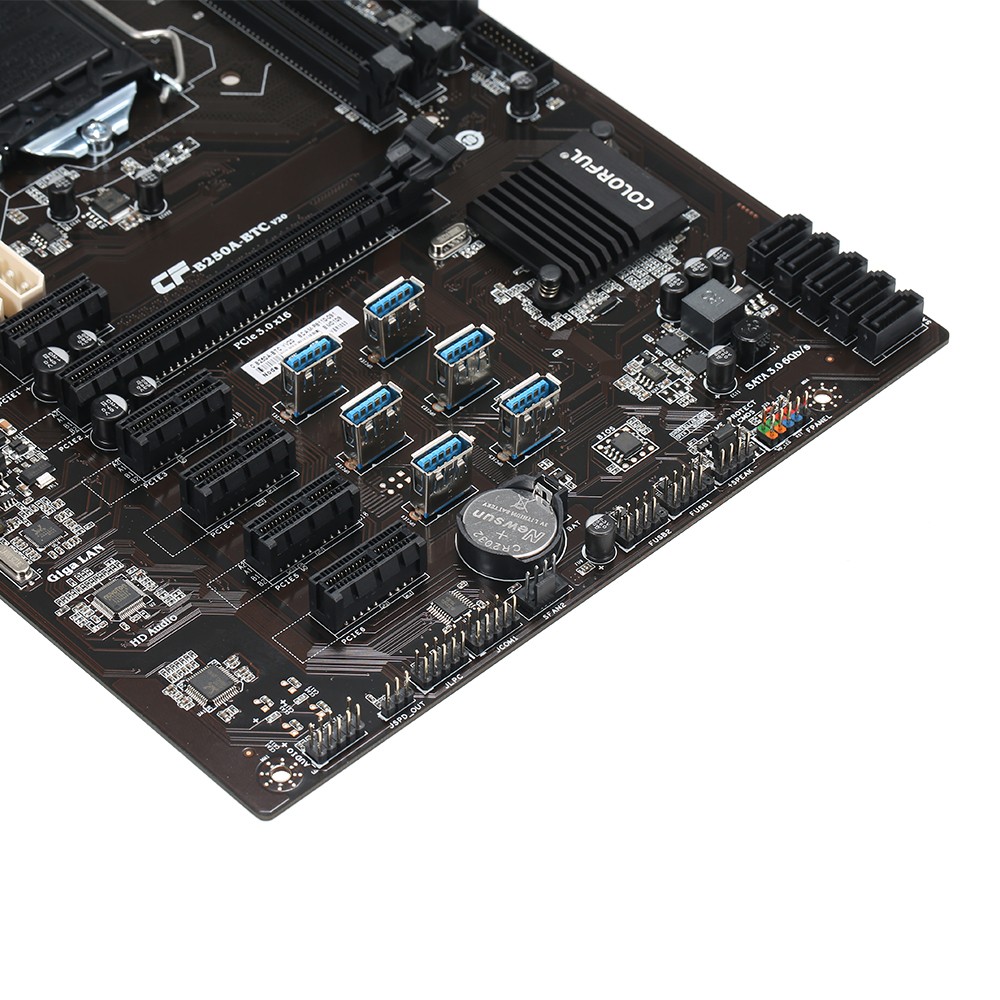

Equipped with 6 PCI-E slots and 6 UPCIE slots, professional mining motherboard designed for optimal mining stability, connect up to 12 pieces graphic cards for mining.

Stable Power Supply
Utilizes full solid military black gold capacitor and a rigid power management module, ensuring highly stable power supply.

LAN Port
Onboard RTL8111F 1000M LAN, provides 10/100/1000MB/s Ethernet to deliver better network responsiveness.

SATA3.0 6Gb/s and USB3.0
High-speed SATA 3.0 compatible, delivering super fast 6Gbps and high speed USB 3.0 ports with theoretical transfer speed up to 5Gbps.

Dual Channel DDR4
2 DIMM slots，support DDR4 dual channel 2400/2133 MHz memory.

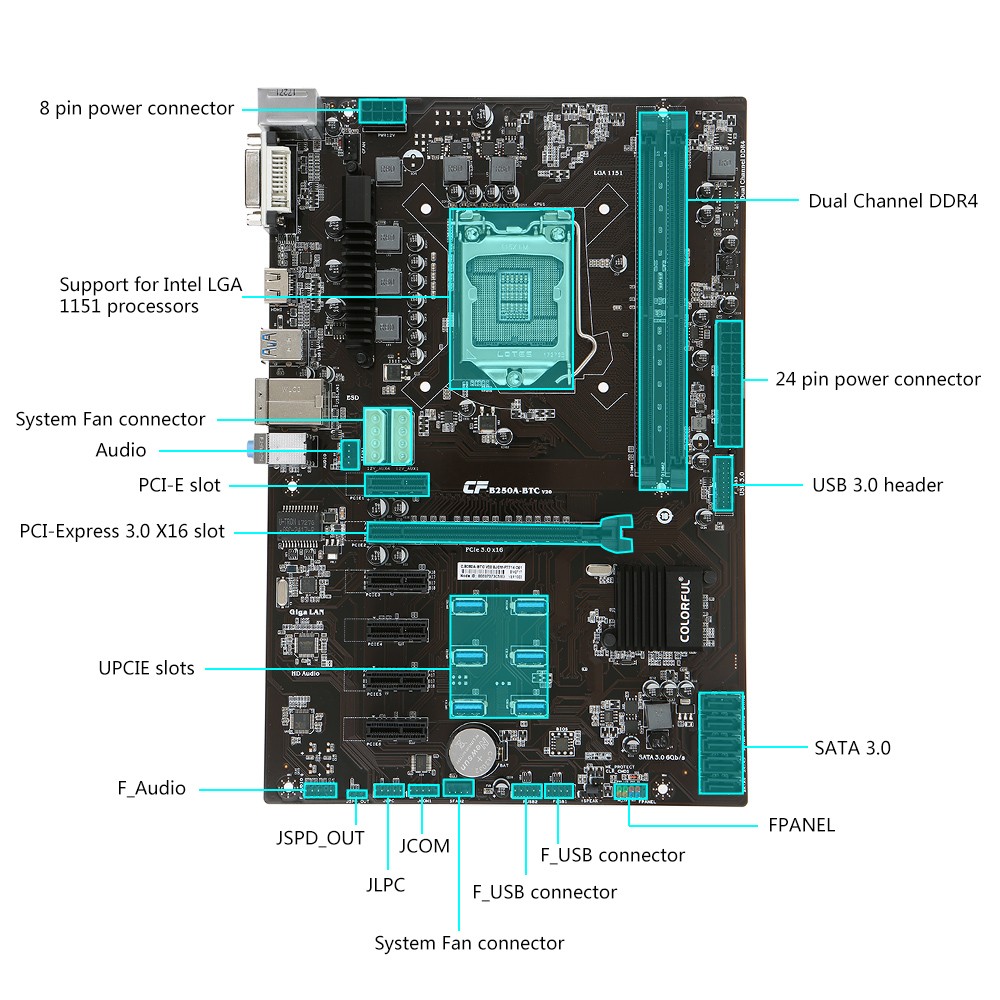

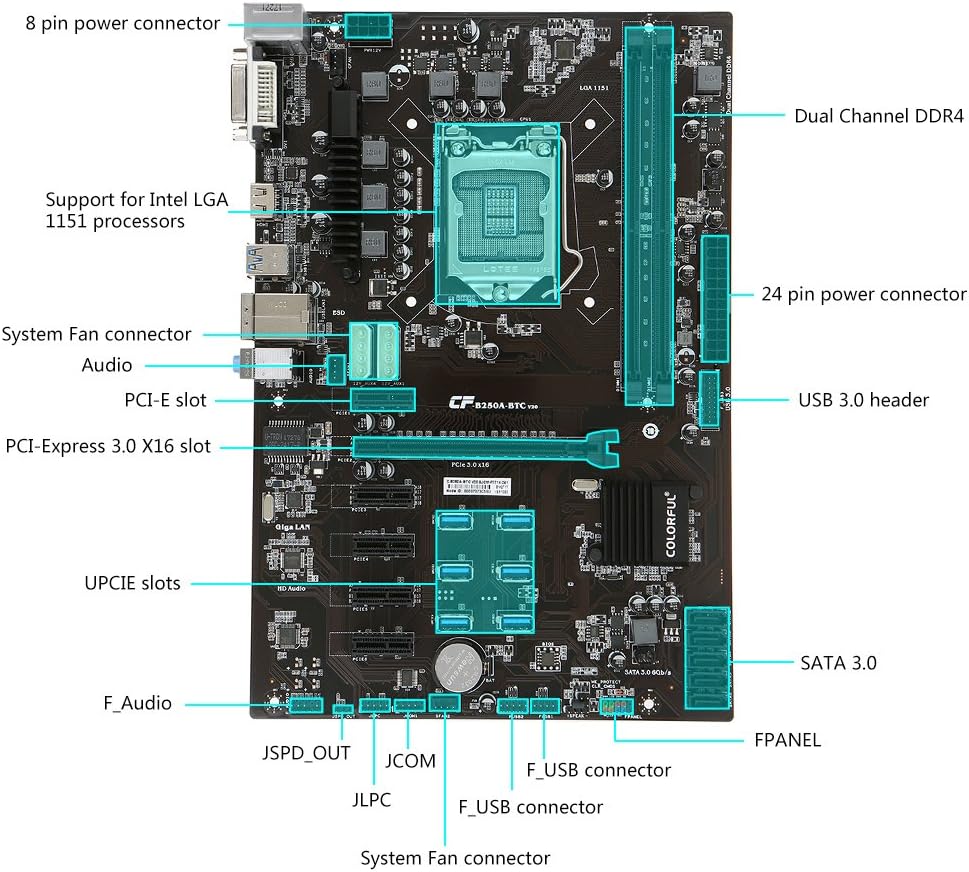

Specification:
Chipset: for Intel B250
Processor: support for Intel LGA 1151 processors
Memory: 2 DIMM slots，support DDR 4 dual channel 2400/2133 MHZ memory
Graphics: 1 * PCI Express 3.0×16 slot, 5 * PCI Express x1 slots

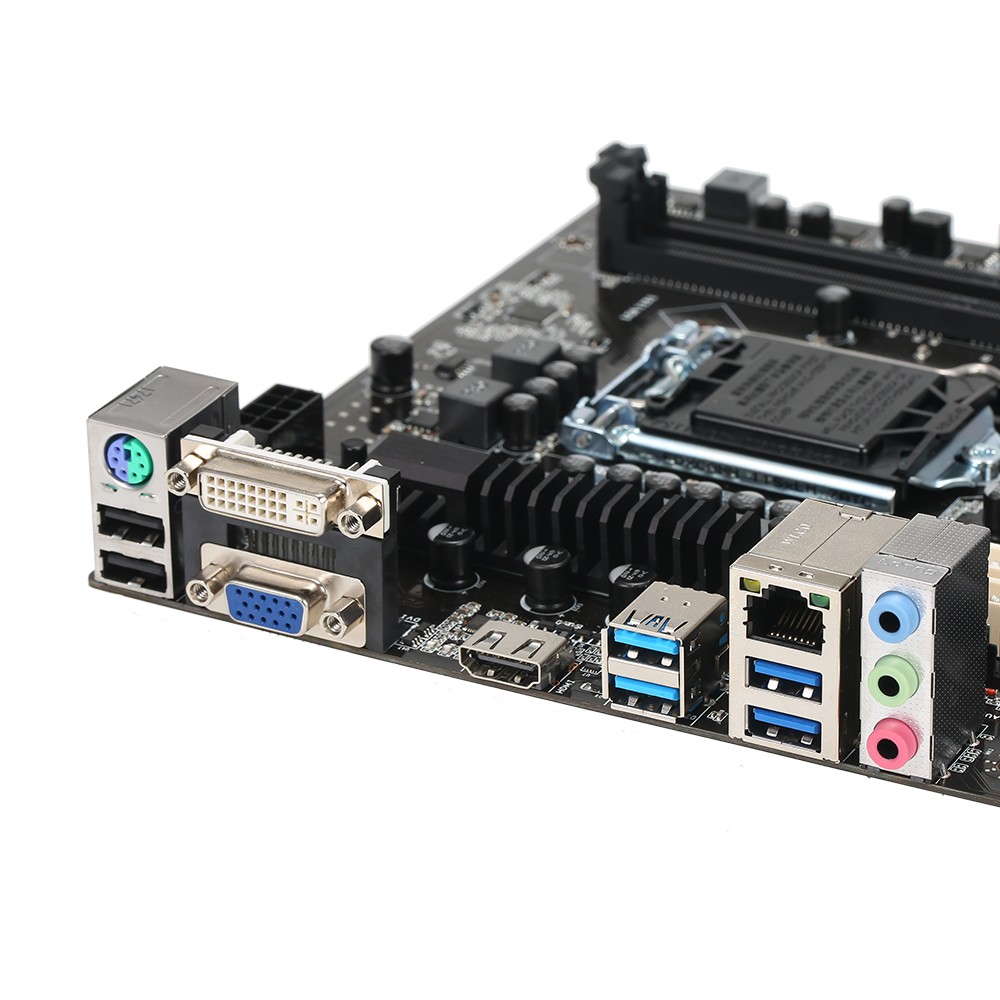

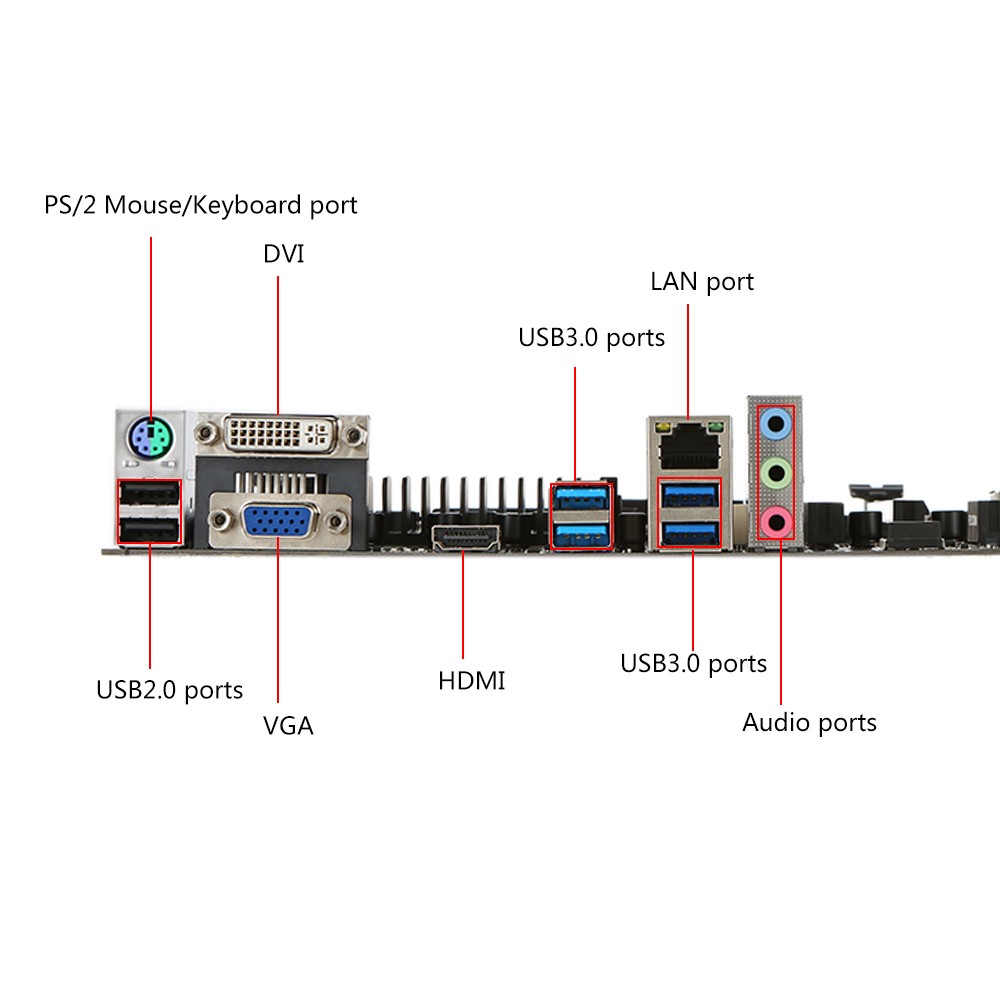

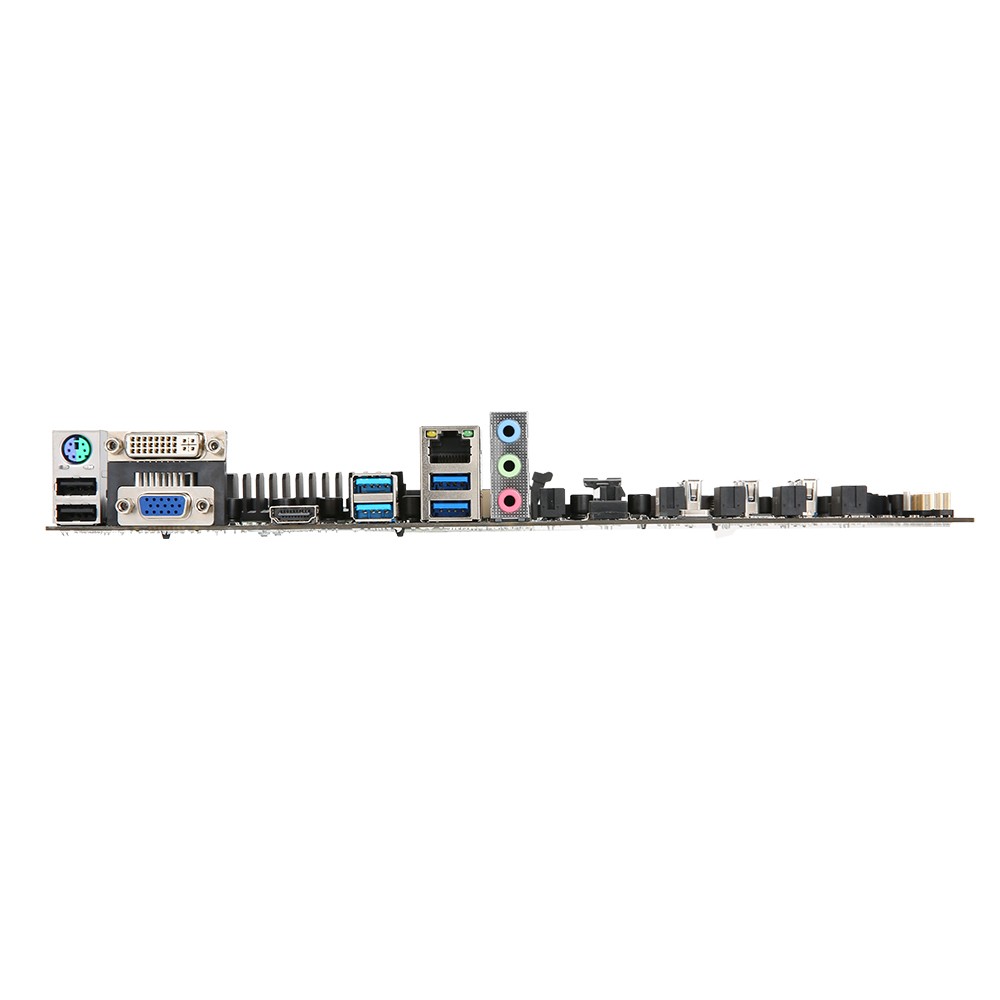

Board I/O:
1 * PS2 ports
2 * USB2.0 ports
4 * USB3.0 ports
1 * RJ45 lan
3 * audio ports（6-channel support）
1 * VGA port
1 * DVI port
1 * HDMI port
Onboard：
2 * 9-pin USB2.0 header
1 * 19-pin USB3.0 header

Expansion Slots: 6 * UPCIE slots
SATA Ports: 5 * SATA3.0 6Gb/s ports
BIOS: 128M UEFI
Power Management: support 84W processors
Hardware Monitor: CPU Fan speed Controlled, SYSTEM Fan speed Monitoring, CPU Temperature Monitoring, System Temperature Monitoring, and Voltage monitoring
LAN: Onboard 1000M LAN, 10/100/1000Mb Ethernet
Audio: 6-Channel audio chipset
Configuration: 200 * 295mm, ATX
Other Features: extension pattern is diversity and extension performance is strong.

Package size: 34 * 27 * 7cm / 13.38 * 10.63 * 2.75in (L * W * H)
Package weight: 962.5g / 2.12lb

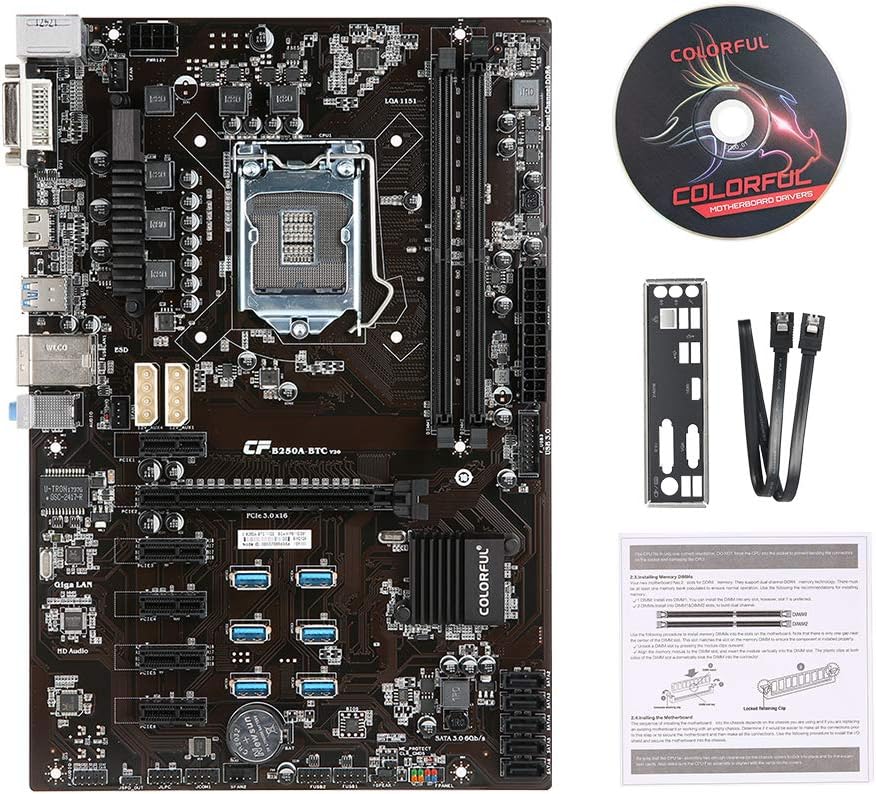

Package list:
1 * Motherboard
2 * SATA cable
1 * IO shield
1 * DVD driver
