Features
◆Supports 7th and 6th Generation Intel® Core™ Processors (Socket 1151)
*8th Gen Intel® Core™ desktop processors are supported with Intel® 300 Series chipset motherboards only
◆VGA DVI
◆4*SATA3.0 6Gb/s
◆2*DDR3/3L 1333/1600 MHZ memory
◆Realtek RTL8111H 1000M LAN
◆6*USB2.0 & 4*USB3.0(include header)

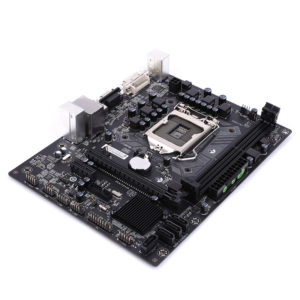

| Motherboard_Model | C.H110M-K D3 PLUS V20 |
| Chipset | Intel H110 |
| Processor | support Intel LGA 1151 Kaby Lake/Skylake processors |
| Memory | 2 DIMM slots，support DDR 3/3L dual channel 1333/1600 MHZ memory slot |
| Graphics | 1*PCI Express3.0X16 slot |

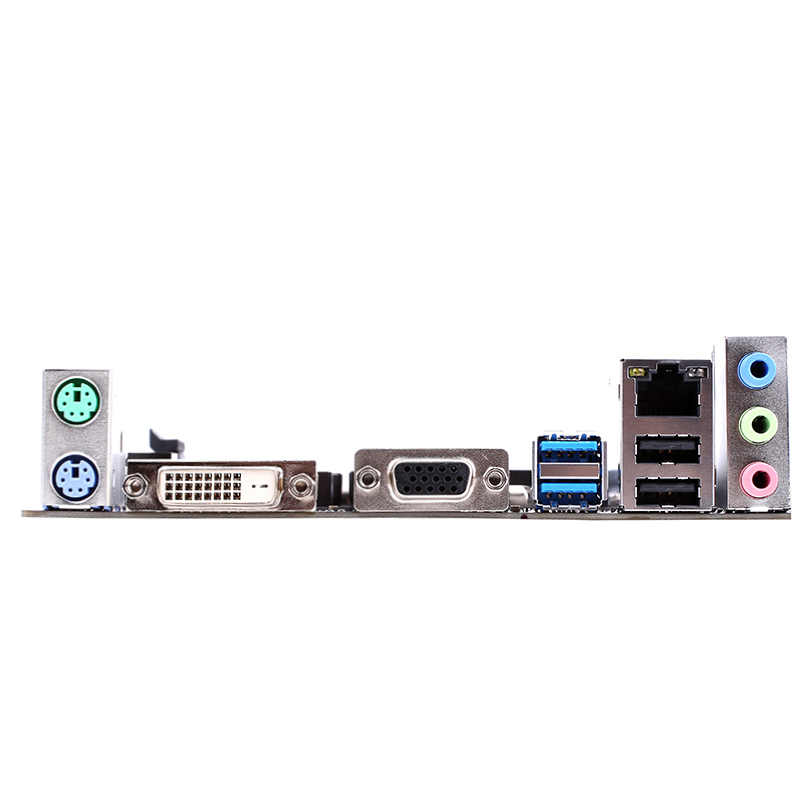

| Board_IO | 1*PS2 ports，2*USB2.0 ports,2*USB3.0 ports,1*RJ45 lan，3*audio ports（6-channel support） 1*VGA port，1*DVI port, onboard： 2*9-pin USB2.0 header， 1*19-pin USB3.0 header |
| Expansion_Slots | 1*PCI ExpressX1 slot |
| SATA_Ports | 4*SATA3.0 6Gb/s ports |
| BIOS | 64M UEFI |
| Power_Management | support 95W processors |
| Hardware_Monitor | CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring |
| LAN | Realtek RTL8111H 1000M LAN |
| Audio | ALC662 6-CH audio |
| Configuration | 225*170mm mATX |
| Warranty | 3 years |
| Other_Features | Support S3 wake-up, network S5 wake-up,Supports PS2 mouse/keyboard/USB wakeup; |
